These are manufacturer project references for MAC3 equipment, presented to illustrate different system configurations. They are not projects completed by Vortex Axion in Sri Lanka. Treat the reference figures as examples and confirm the requirements and proposed specification for your own site.
BIOGAS
MAC3 instrument air reference for biogas installations
Manufacturer reference — CLARKE ENERGY: a five-unit instrument air application combining lubricated screw compression, desiccant drying, filtration and remote monitoring. The reference lists 40 m³/h per unit and a −40°C dryer dew point. A Sri Lanka proposal must be sized against the actual instrument demand and installation conditions.
ICE BLASTING
MAC3 High-Capacity Solutions for Aerospace Ice Blasting

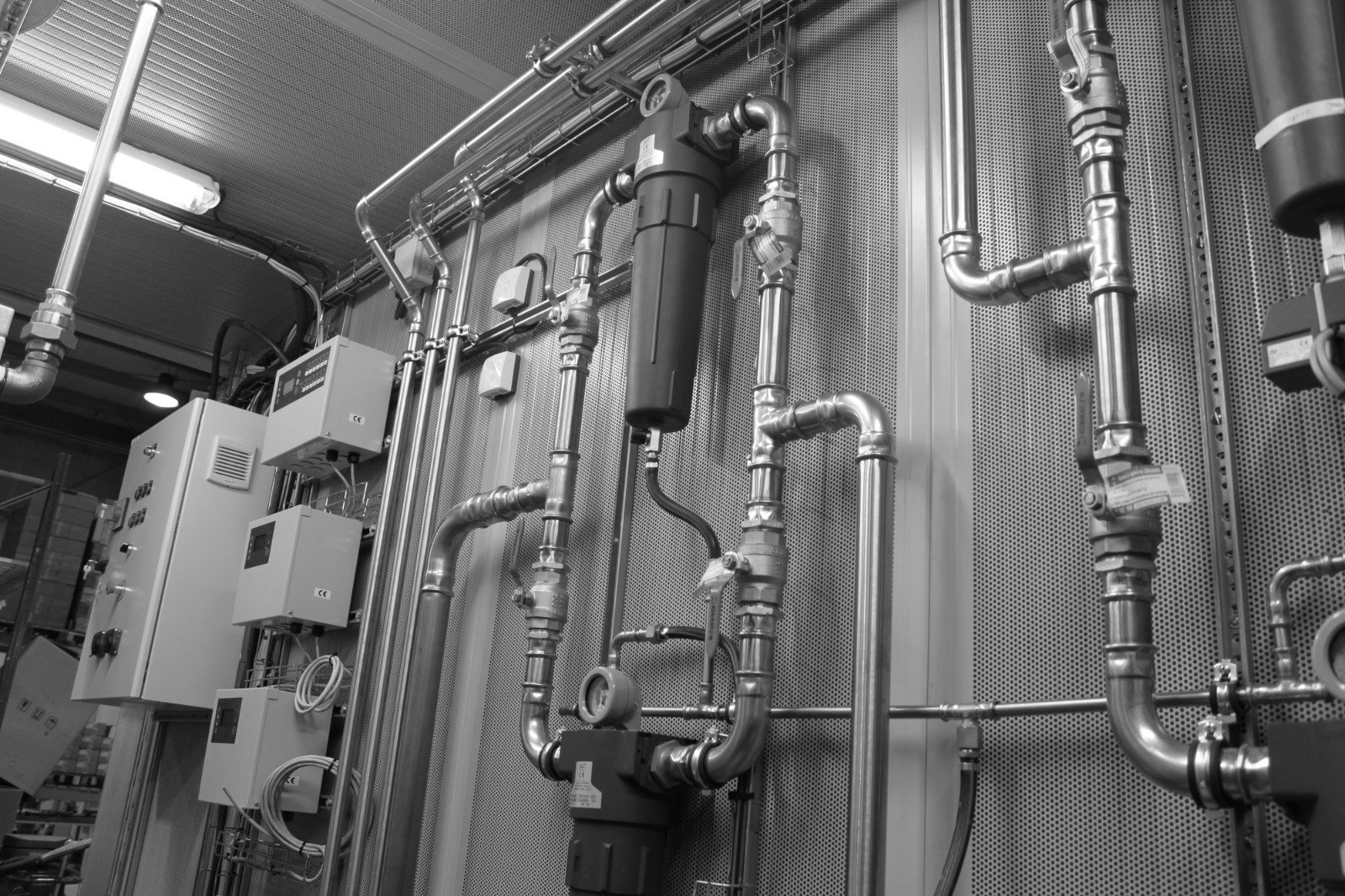

Manufacturer reference — SAFRAN: a mobile instrument air package for ice blasting. The example combines a 50 hp variable-speed screw compressor with refrigerant drying and stainless steel piping, with a listed capacity of 350 m³/h. Compare air quality and site power requirements separately for your application.
LABORATORY

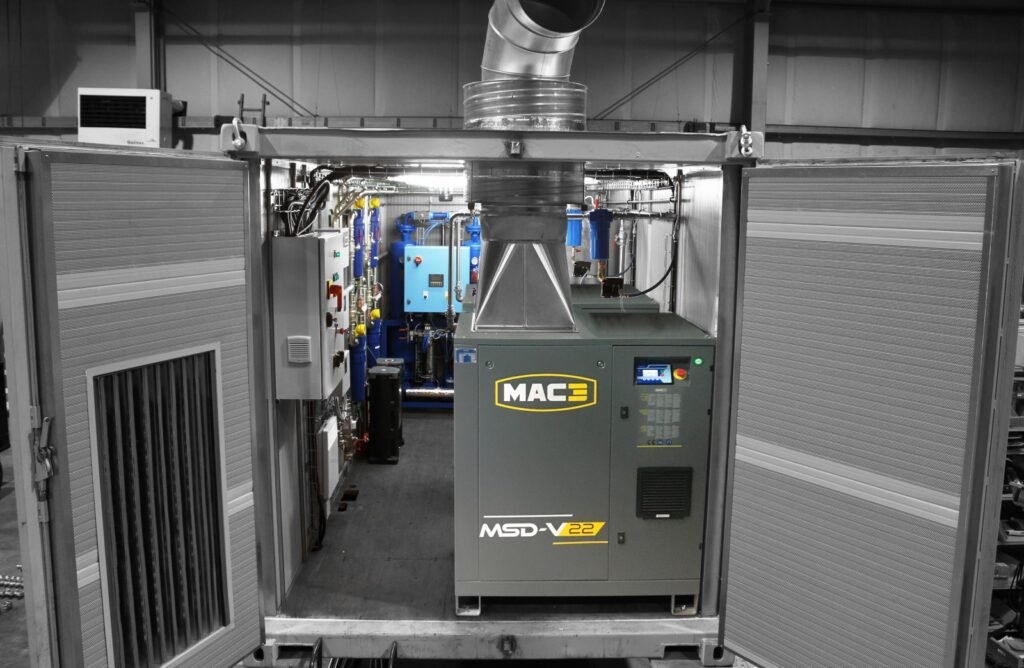

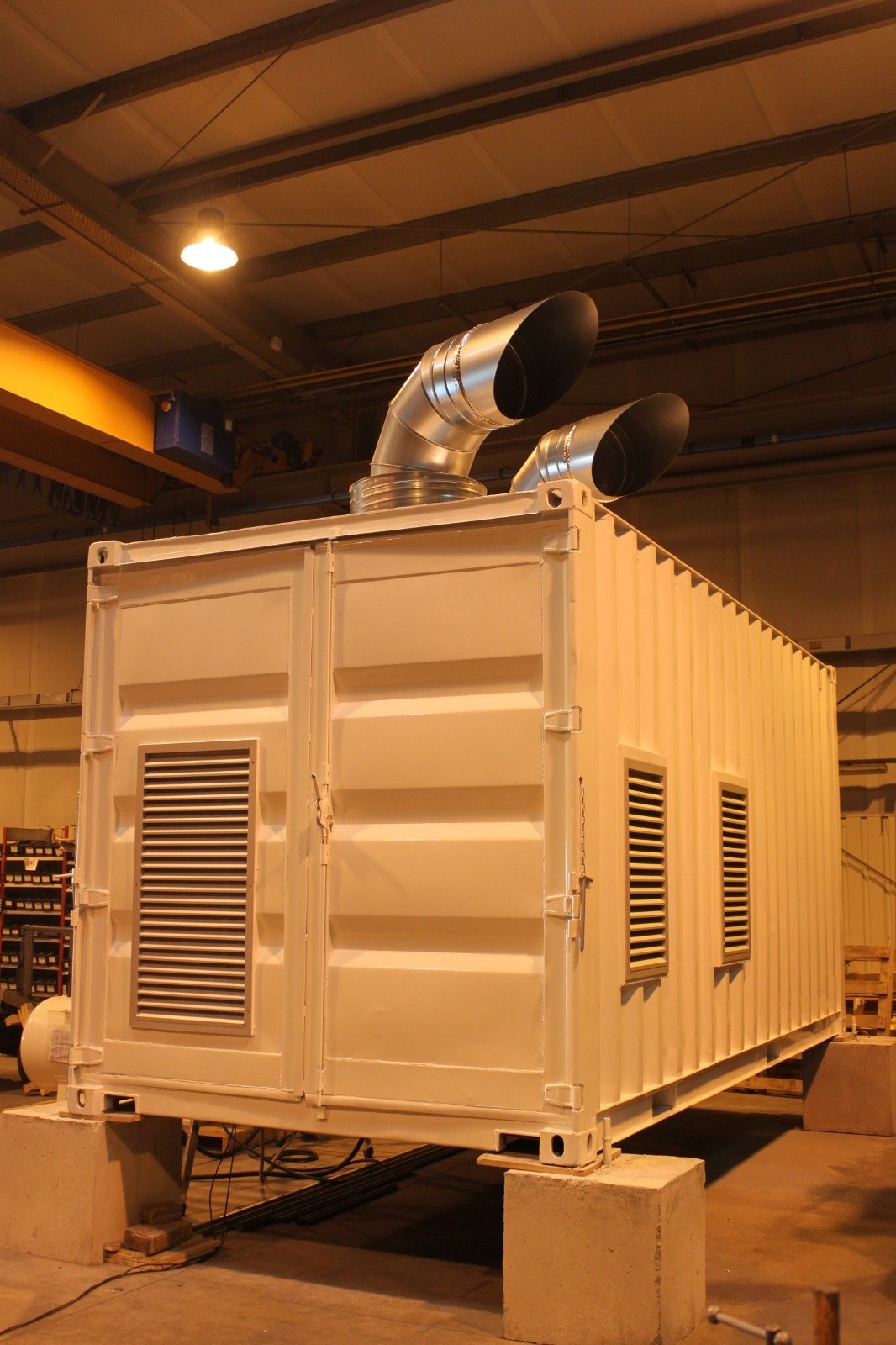

MAC3 Roof-Mounted Containerized Air System

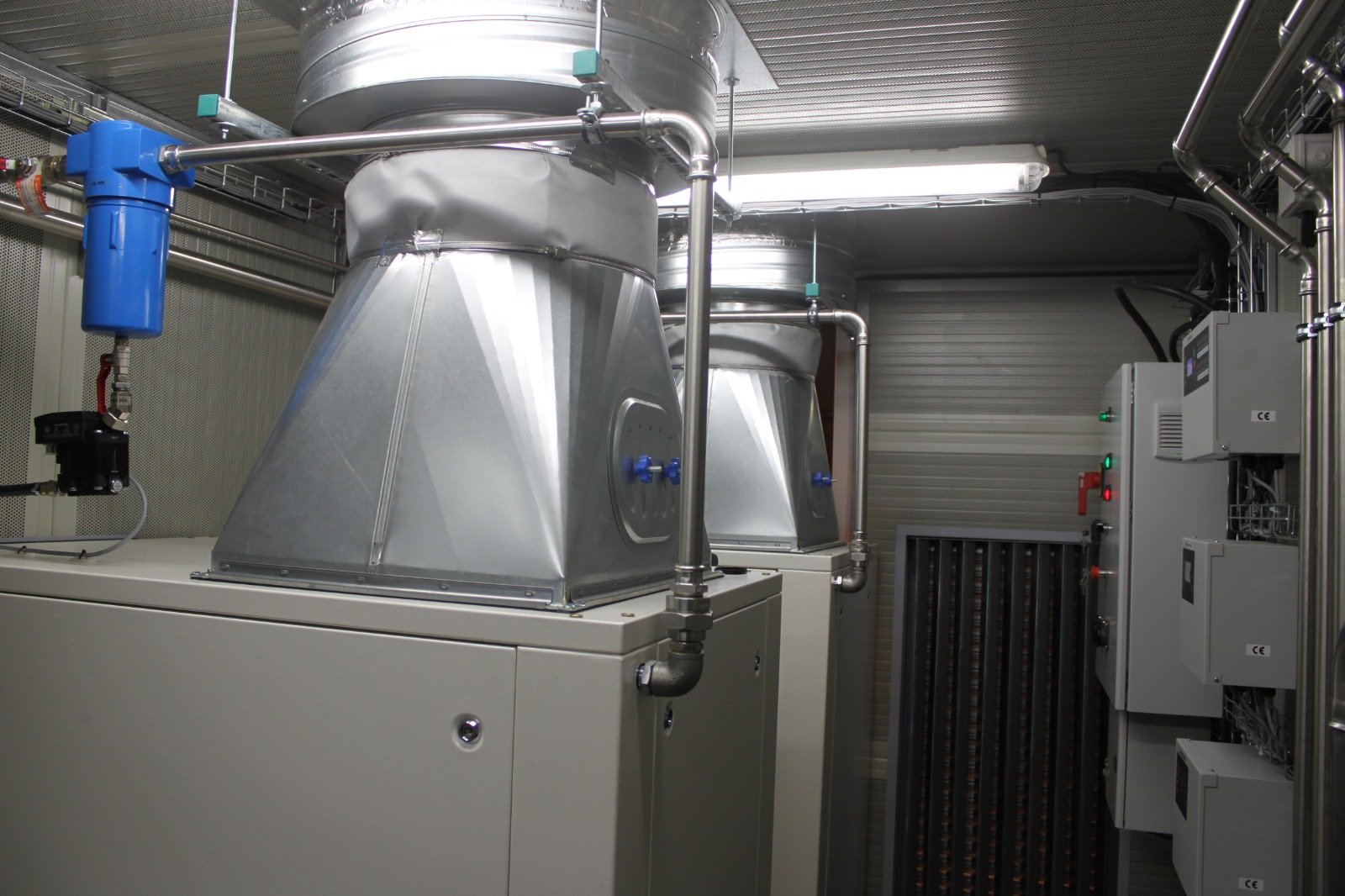

Manufacturer reference — ECOLE DES MINES: a containerized compressor installation placed on a roof because ground-level building space was limited. The example uses two 30 hp variable-speed compressors, desiccant drying and coordinated controls. Structural suitability, access and ventilation require project-specific assessment.
CONSTRUCTION
MAC3 Heavy-Duty Containerized Solution for Construction

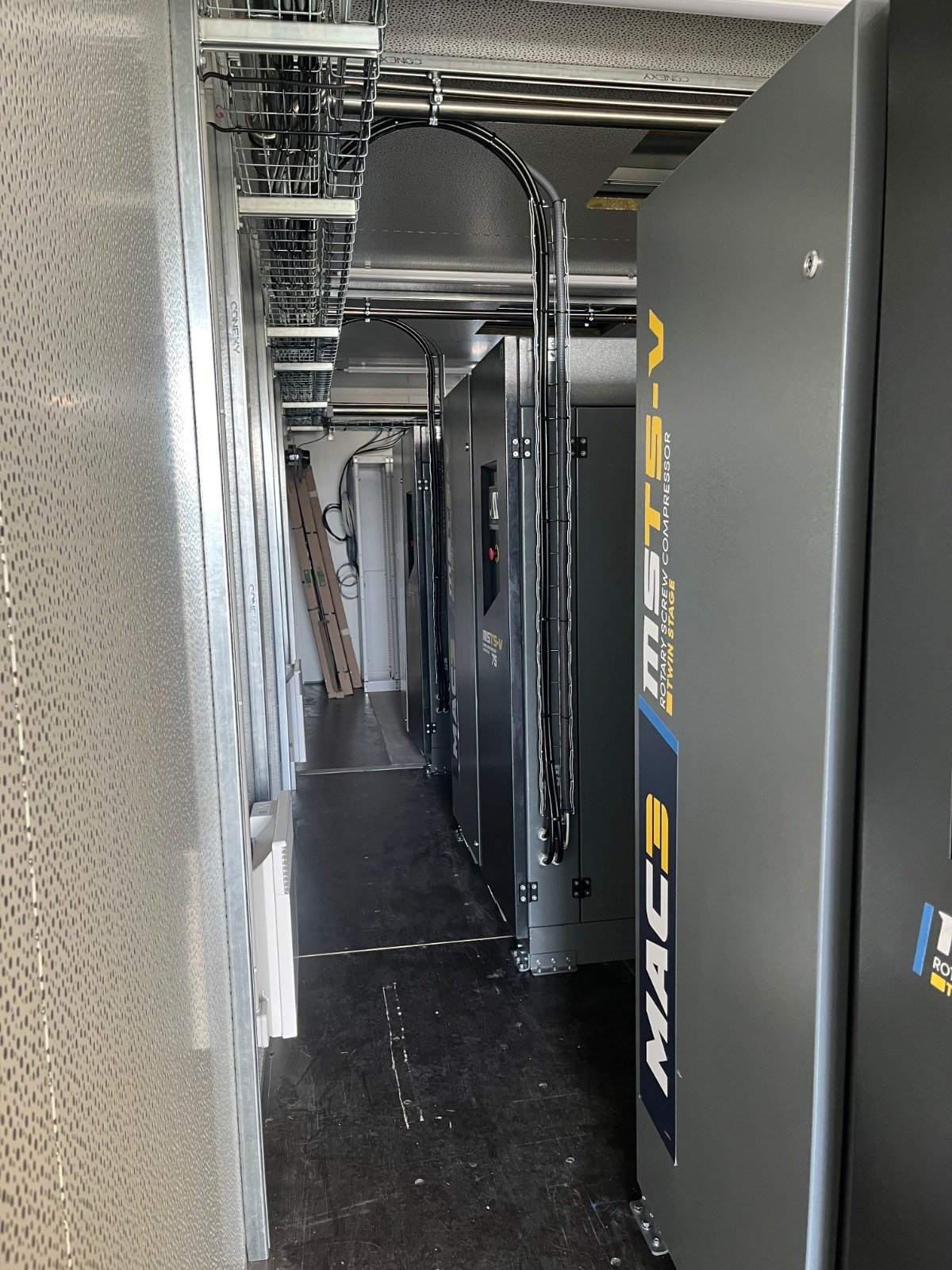

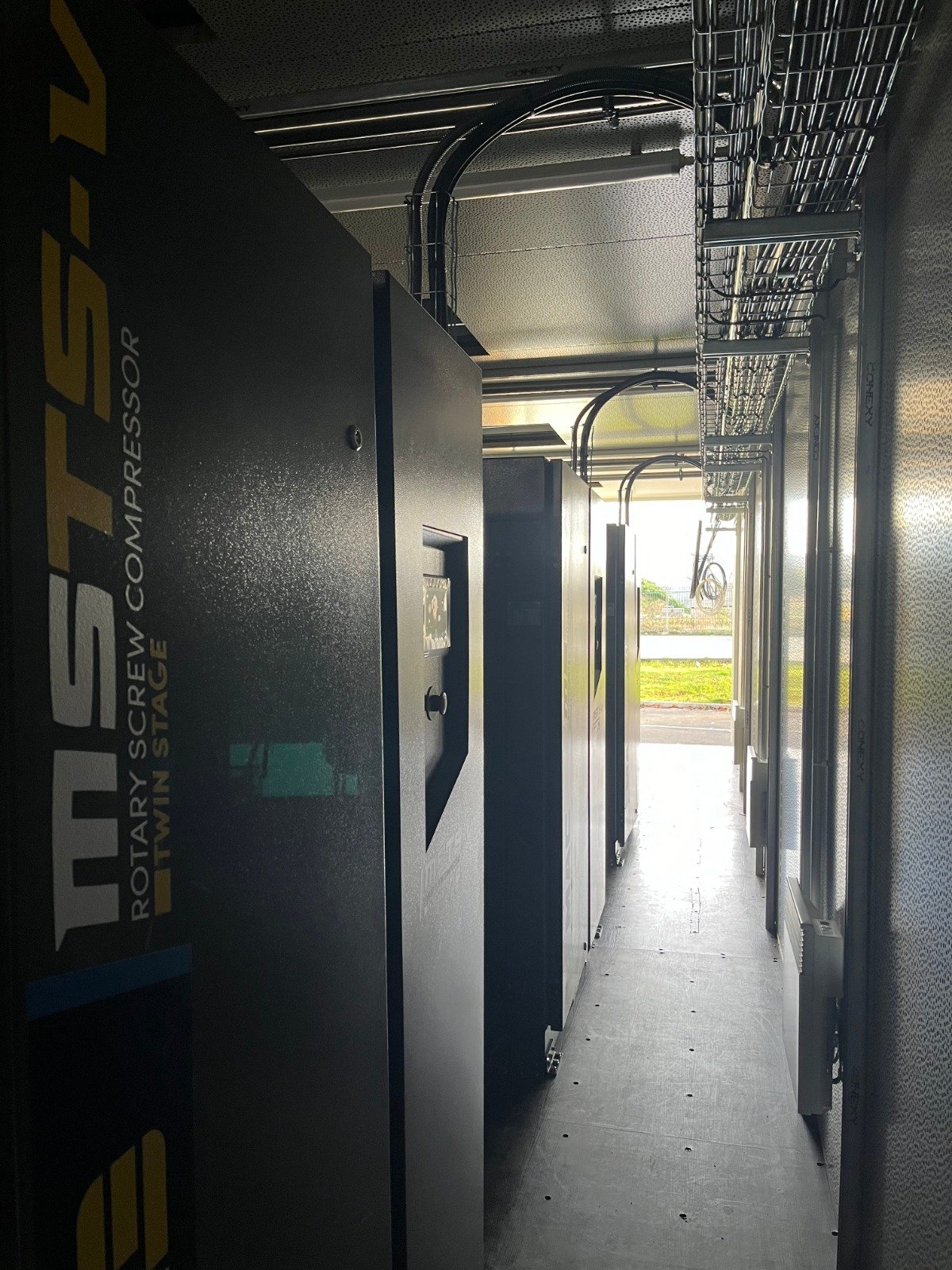

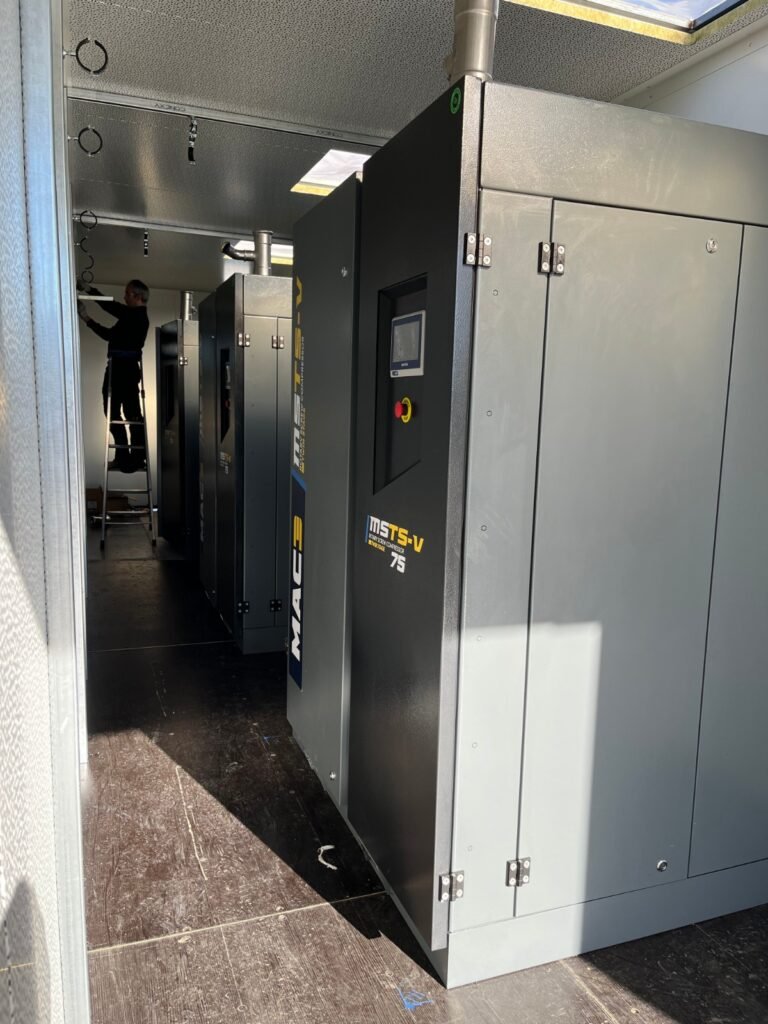

Manufacturer reference — SITINAO: an air package for concrete construction with three 100 hp variable-speed screw compressors. The listed reference capacity is 2,700 m³/h, with coordinated control and an external desiccant dryer. This configuration illustrates how space and demand affect package design.
LASER CUTTING

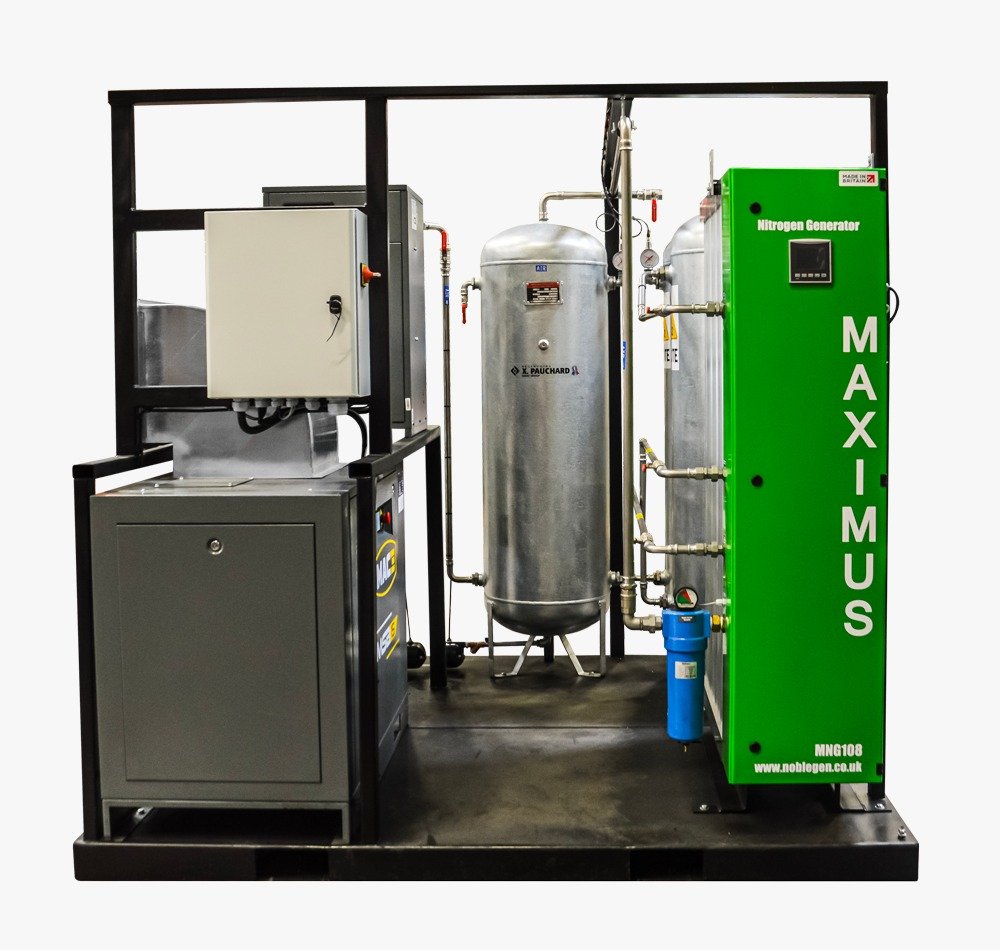

MAC3 High-Purity Nitrogen for Laser-Cutting

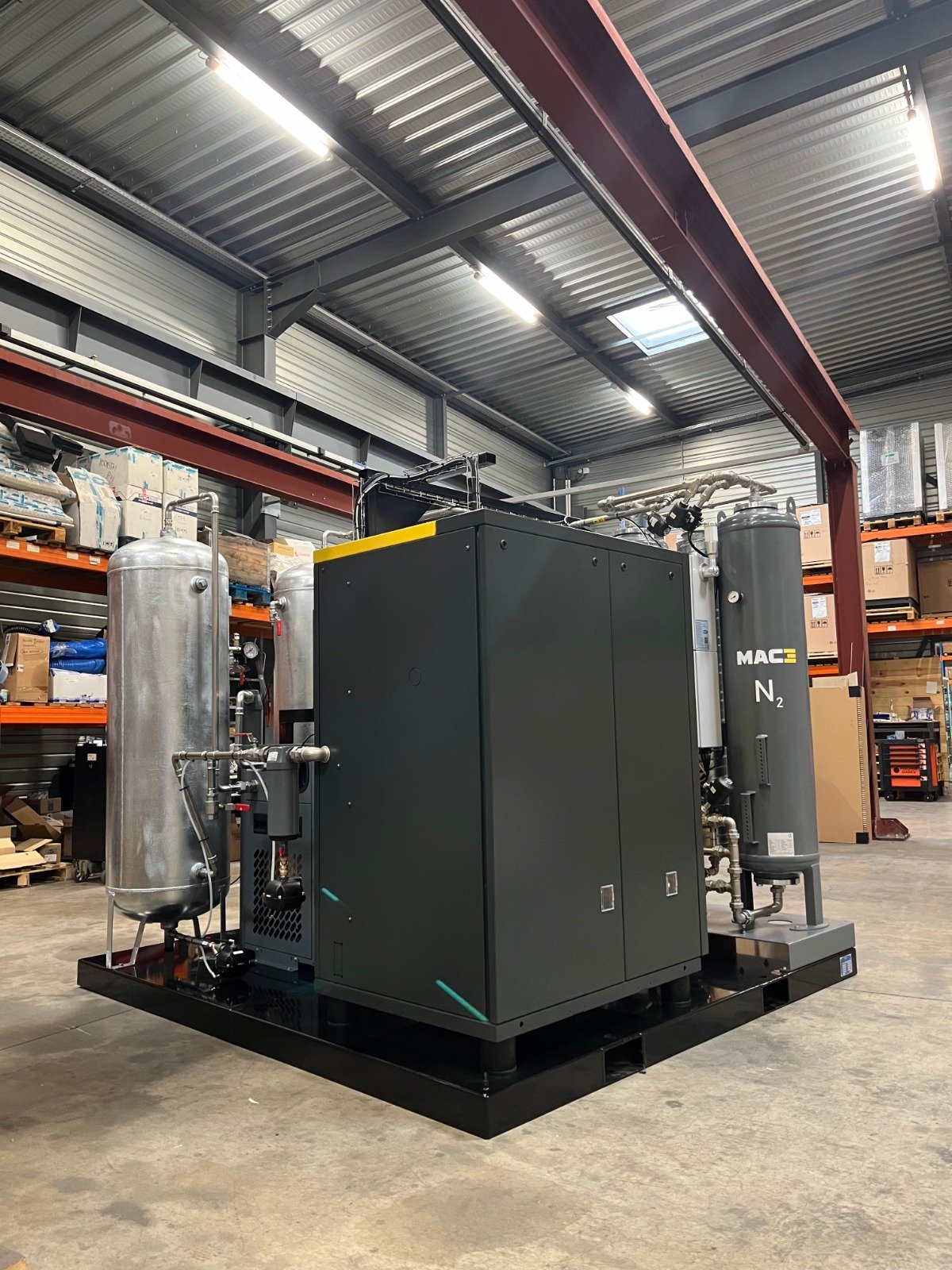

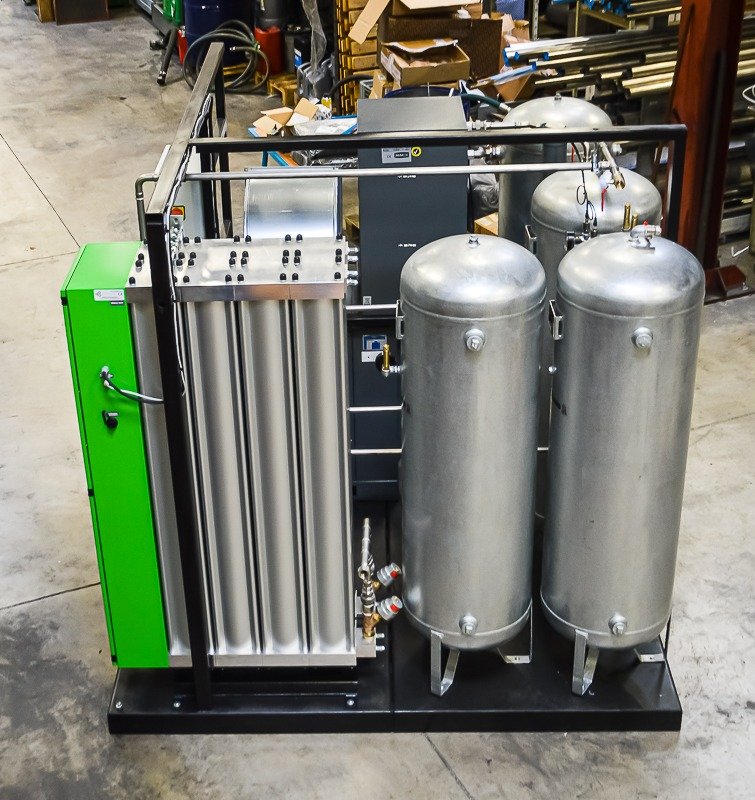

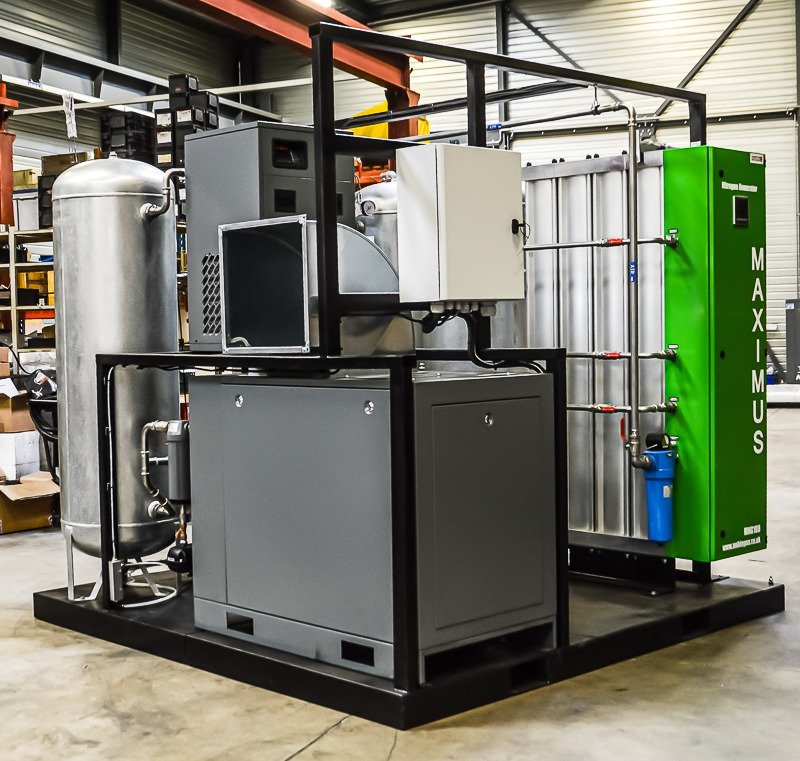

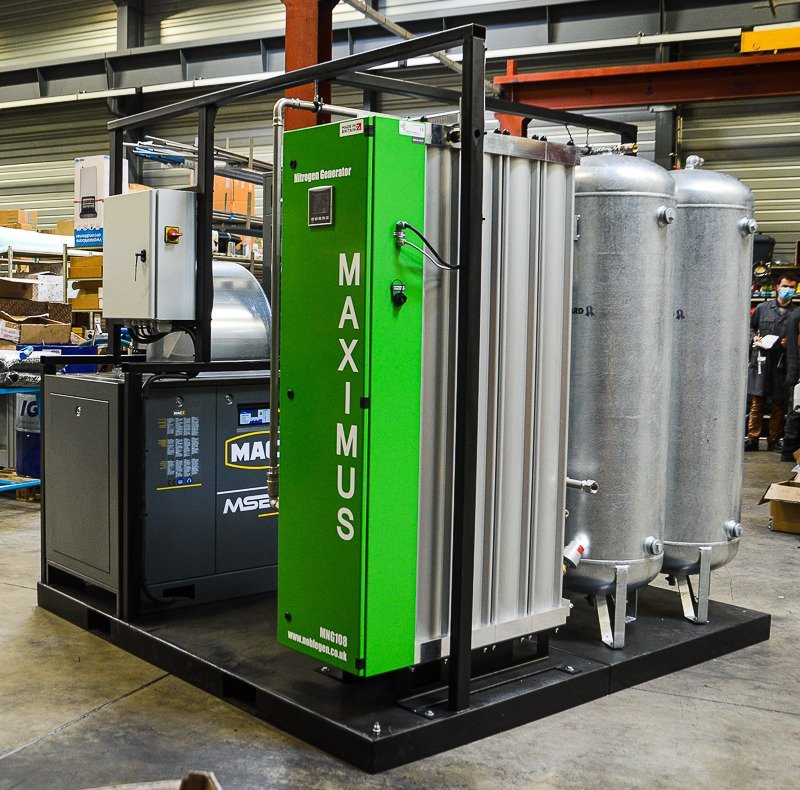

Manufacturer reference — BODOR: compressed air feeds a PSA nitrogen generator, with activated carbon filtration and a booster for bottle filling. The reference lists 99.99% nitrogen purity, storage pressure up to 300 bar and regulated delivery at 25–30 bar. Purity and flow must be specified together for a new installation.
CONSTRUCTION

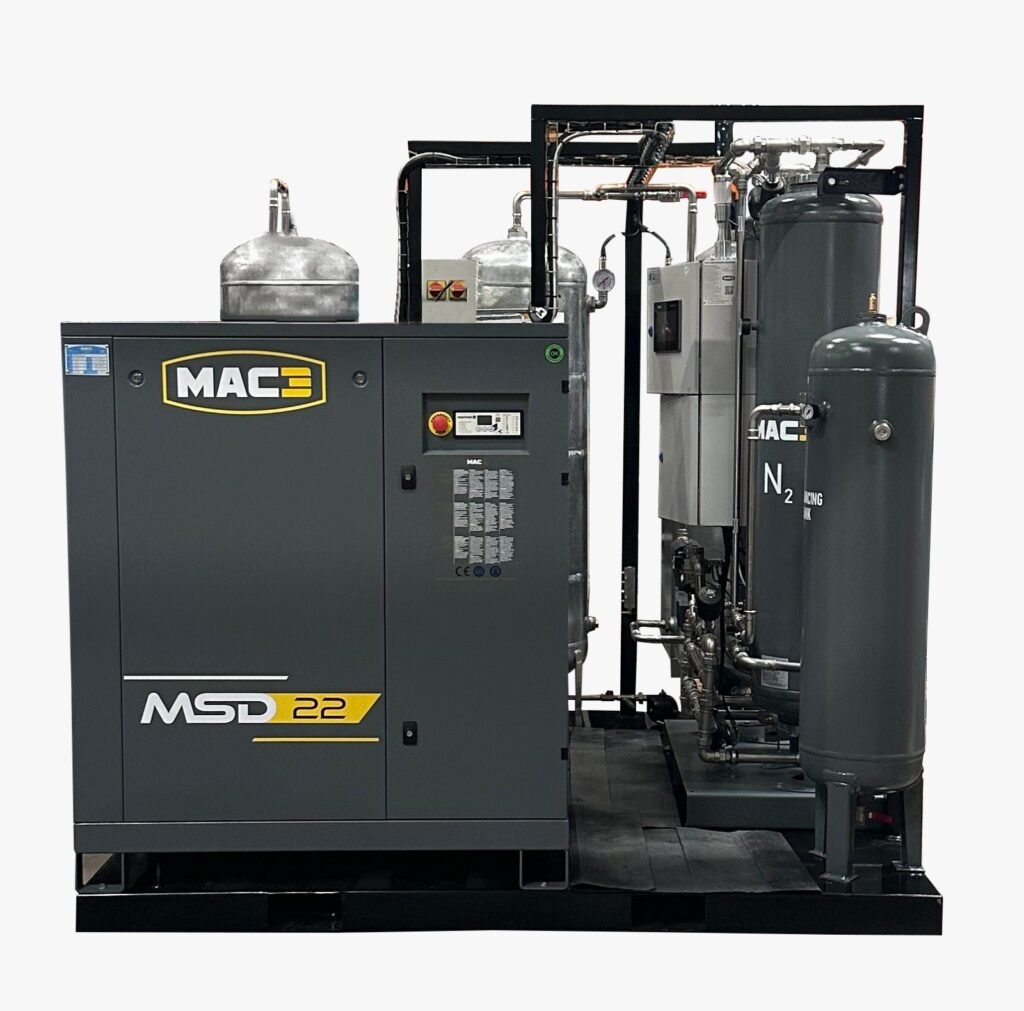

MAC3 Global N2 Supply for Oil & Gas

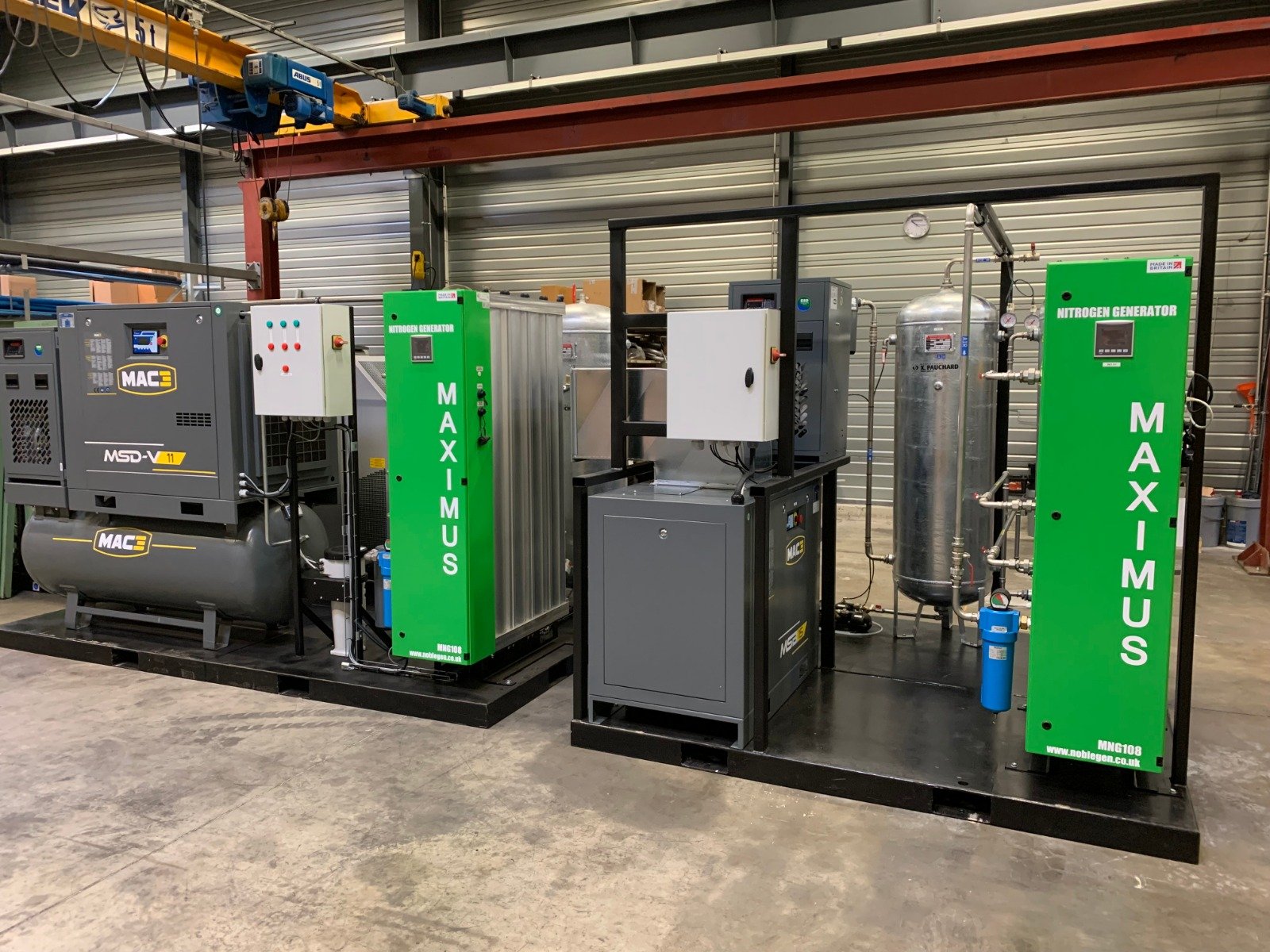

Manufacturer reference — SNF: nitrogen packages combine MAC3 lubricated screw compressors with generator communication through MODBUS. The referenced arrangements list 20–24 m³/h nitrogen output at 99.9% purity. Use these figures as examples rather than a specification for a Sri Lanka quotation.
Our Commitment to You
Discuss a custom air or nitrogen package for your Sri Lanka site with Vortex Axion on 0777 123 263 or 0117 101 818. Provide demand, pressure, air or gas quality, available utilities and installation constraints.
